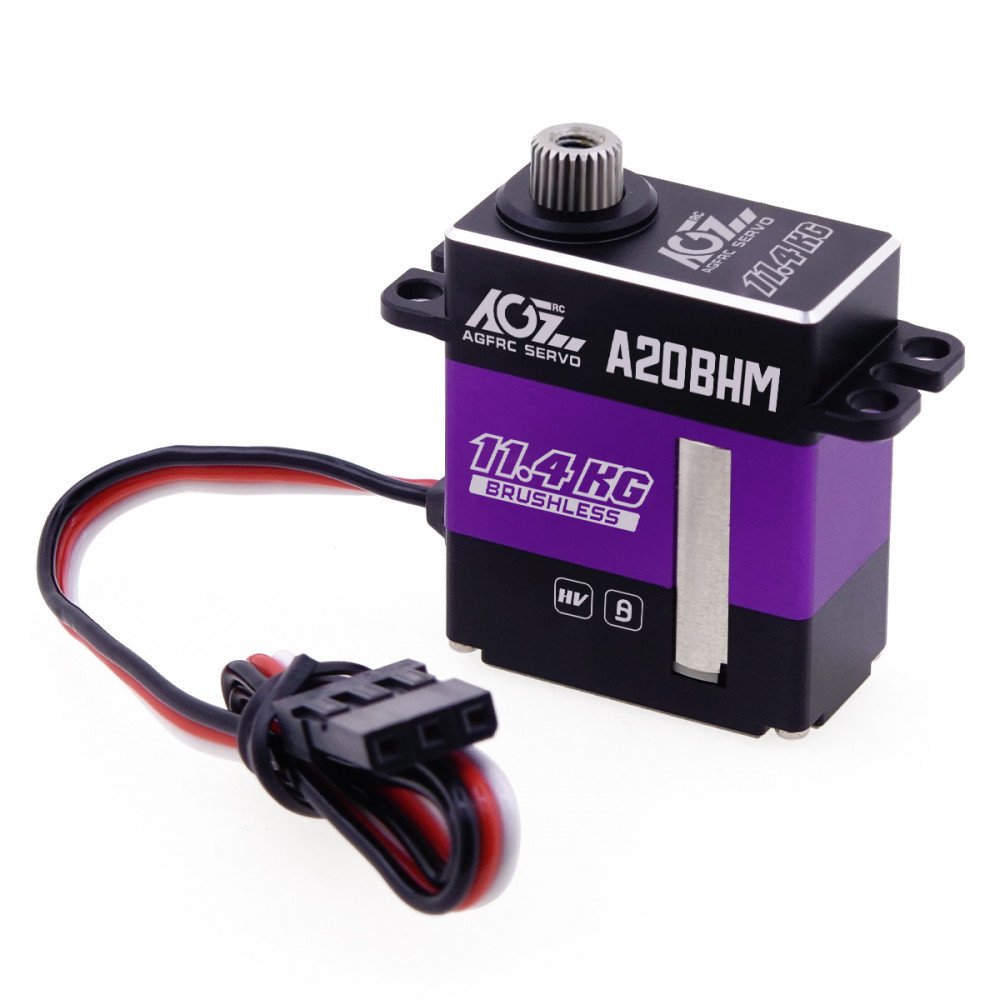

AGFrc A20BHM 0.068sec Fast Response 11.4kg Super Torque Brushless Motor Steel Gear CNC Programmable Mini Servo For RC Cars

AGFrc A20BHM, is the 8.4V high voltage compatible performance digital mini servo, also the first launch brushless motor 12mm thickness RC servo. The biggest highlight of this product is the use of a newly designed brushless motor. With this support, the speed of servo can reach 0.068sec and the torque can even reach 11.4kg-cm at 8.4V in this Mini size. It is made in a robust CNC aluminum case with high accuracy metal gears, it particularly ideal for RC cars and other application, like robot arm, teaching and other agricultural applications which asked for a 11.4kg-cm BLS mini size servo.

Feature

High Precision Metal Gears

Fully CNC Aluminium Housing

Long Performance Life Brushless Motor

Digital Programmable 25T Mini RC Servo

Good Smoothness Double Ball Bearings

Ideal for 1/24 Scale RC Monster Car, SCX10.3, SCX24, Racing Car etc.

Specification of A20BHM

Operating Voltage: 4.8-8.4V

Operating speed:

0.105sec/ 60° @ 4.8V

0.092sec/60° @ 6.0V

0.075sec/60° @ 7.4V

0.068sec/60° @ 8.4V

Stall Torque:

7.20 kg-cm (100 oz-in) @ 4.8V

8.50 kg-cm (118 oz-in) @ 6.0V

10.20 kg-cm (142 oz-in) @ 7.4V

11.40 kg-cm (158 oz-in) @ 8.4V

Gear: Strength Steel + Copper

Motor：Brushless

Programmable: Yes

Size: 23*12*27.5mm (0.90 x 0.47 x 1.08 in)

Weight: 22g

Connector Wire: TYU 180mm / 26AWG
