• Test result for 13.5T: @30deg: 3600~3700kv, 3.6A

Motor Dimensions (Diameter x Length) 35.8mm x 51.5mm

Shaft Diameter: 3.17mm

Magnet Dimensions (Diameter x Length): 12.3 x 5x 24mm(3.5T9.5T), 12.5 x7.2×25.2mm (10.5T21.5T),~12.3 x7x25.2mm (25.5T)

• Variable End bell with changing the output power and torque of the motor
• Weight: ~150g (vary with different motor turn)
• Recommended RC Model Car: 1:10 model car, Buggy, MINI Car
• Available Turns: 4.5T, 5.5T, 6.5T, 7.5T, 8.5T, 9.5T, 10.5T, 13.5T, 17.5T, 21.5T

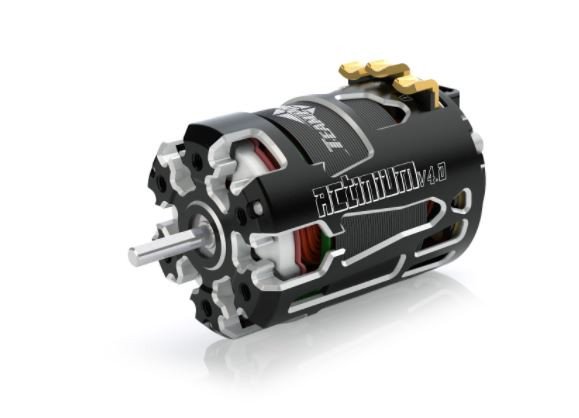

What’s new with this ALL NEW Actinium V4.0 motor:

Change to new stator design to improve the torque at bottom end.

Black coating stator with better outlook appearance.

High grade copper wire to improve the motor resistance.

More dissipate hole on the convection system under the new casing design.
