AGFRC SA30BHM 11.5KG 0.060s 8.4V BLS Winch digital programmable servo

A Servo released in 2023 1y ago

AGFRC SA30BHM is brand new mini size high torque brushless smart servo, only 32g super light weight with full aluminum case. Metal gear chain and structure make it stronger and reliable to use. Fast response and high precision. With the help of brushless motor, it brings 10.5kg super high torque and 0.068sec fast speed at 7.4V. Standard 25T spline more common use design, which is more durable for impact force. Programmable smart feature allow to change to the firmware for regular and winch servo usage. It is not only fit well with 1/12 pan car, but also perfect for more RC models like electric motorcycle, Robot, mini crawler, Buggy. If you need economic version, the waterproof plastic case B24CLM is the good option.

Feature

Fully CNC Aluminium Case

High Performance Digital Servo

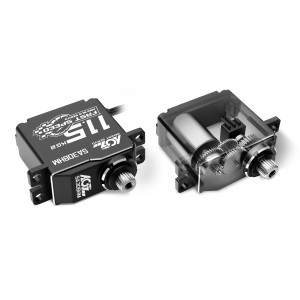

High Precision Titanium Gear

High Power Brushless Motor

Durable 25T Standard Spline

Smooth Double Ball Bearings

Support various ultra-high-speed modes like SSR, SUR, SXR, SR

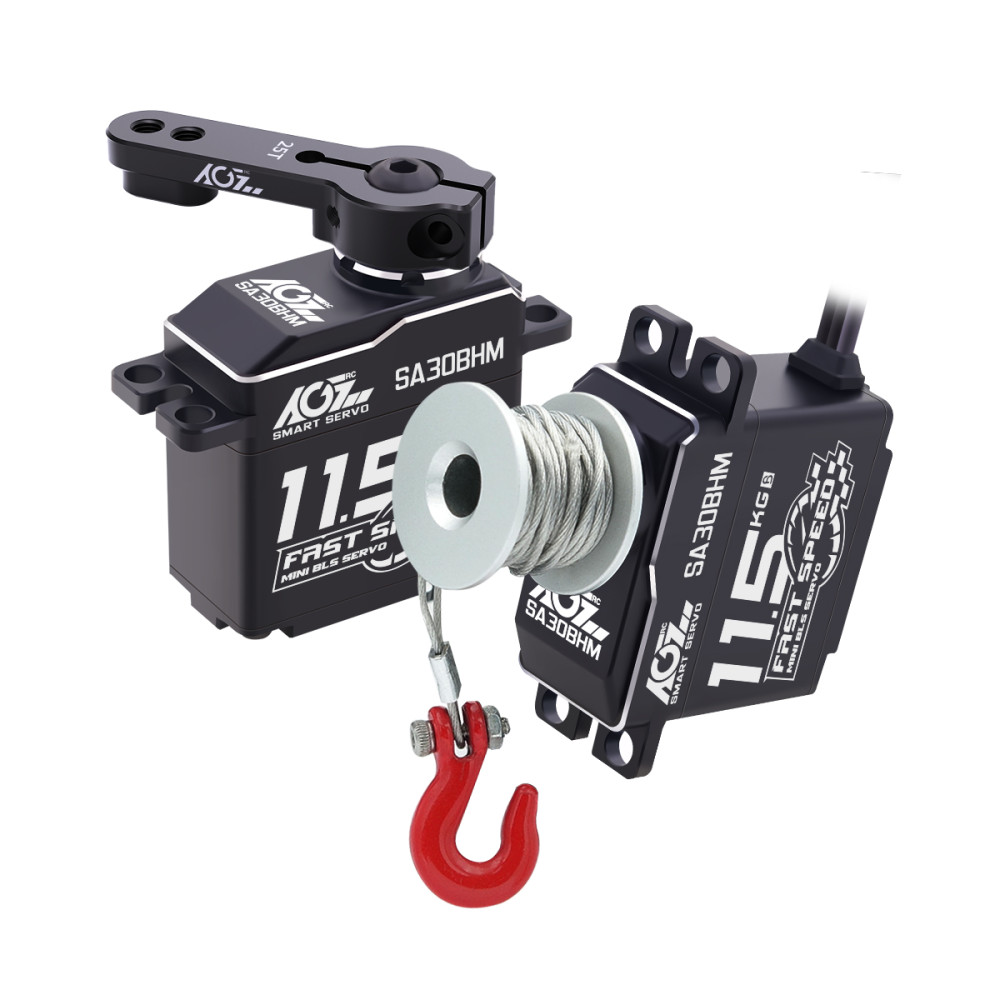

Smart Feature for Regular and Winch Usage Via USB Programmer

Ideal for 1/12 pan car, 1/8 RC Motorcycle, 1/16 RC Car, Rock Crawler, Truck, Robot, Airplane etc.

Specification of SA30BHM

Operating Voltage: 4.8-8.4 V

Operating speed: 0.100sec/ 60° @ 4.8V

Operating speed: 0.082sec/60° @ 6.0V

Operating speed: 0.068sec/60° @ 7.4V

Operating speed: 0.060sec/60° @ 8.4V

Stall Torque: 8.0 kg-cm (111 oz-in) @ 4.8V

Stall Torque: 9.0 kg-cm (125 oz-in) @ 6.0V

Stall Torque:10.50 kg-cm (145 oz-in) @ 7.4V

Stall Torque:11.50 kg-cm (159 oz-in) @ 8.4V

Gear: Titanium

Motor: BLS

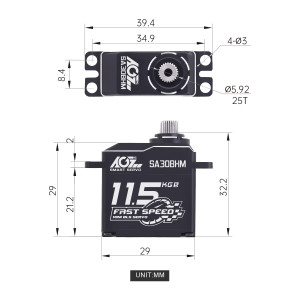

Size: 29*14*29mm(1.14*0.55*1.14 in)

Weight: 32g

Connector Wire: TYU 180mm / 26AWG

For any questions or more info needed, please feel free to contact me at agf.sales05@agfrc.com
