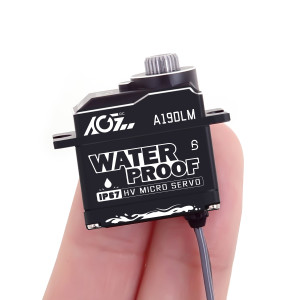

The first new product of 2024.

After repeated testing and modifications for the sub micro servo A19DLM, now it is available now. Fast cool full aluminum case and structure. Popular and durable standard metal 25T spline, totally upgrade from material and workmanship for high end digital micro servo.


With robust metal structure and gear set, this servo can deliver 4KG.CM (55.6 oz-in) super high torque and 0.088sec/60° speed at 8.4V even in this compact size. Easy to install for limit space for lock dig shift usage in different scale model such as 1:18 , 1:10, 1:8 etc. Programmable feature also allow for different users such as technical engineer, project manager or developer to find the suitable data for their applications.

Great choice to upgrade for your Traxxas all 1/10 models, 1/10 RC Crawler TRX-4 TRX-6, Axial SCX10 III, Capra, or 1/18 TRX4M, Aixal 1/10 SCX10 III Jeep JL Warngler 4WD, Absima 1:10 EP Crawler, Absima Sherpa CR3.4 1/10 Crawler, Absima 1:8 EP Crawler, Vanquish phoenix, Absima sherpa

Feature


Excellent Heat Dissipation With Aluminum Case

Equipped with the Industry Standard 25 Tooth Spline

Optimized for Shift Dig Steering Usage

4.8-8.4V Wide Voltage Application

Magnetic Waterproof IP67

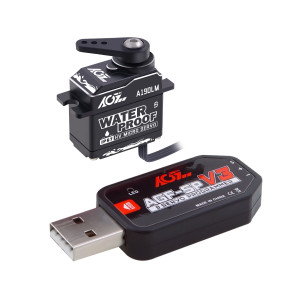

Parameter Programmable

Specification

Model Name: A19DLM

Operating Voltage: 4.8-8.4V

Operating speed:

0.130sec/60° @ 4.8V

 0.110sec/60° @ 6.0V

0.095sec/60° @ 7.4V

0.088sec/60° @ 8.4V

Stall Torque:

 2.2 kg-cm (30 oz-in) @ 4.8V

3.0 kg-cm (41 oz-in) @ 6.0V

3.5 kg-cm (48 oz-in) @ 7.4V

4.0 kg-cm (55 oz-in) @ 8.4V

Gear: Titanium

Motor: DC

Size: 22.9*12.8*22mm

Weight: 18g

Connector Wire: TYU 350 mm / 26AWG
