AGFRC A66FHLW 60KG 0.100s 8.4V 4 Pole Brushless Waterproof Digital Programmable Servo

A Servo 1y ago

AGFrc A66FHLW Digital 4-Pole Brushless Servo of the new generation with newly developed and the top shape design, housing fully made of CNC aluminum, extremely strength steel gears, and metal double ball bearings. Due to the upgraded 4-Pole brushless motor, this high-powered low profile servo has the ability to output a whopping 60 kg-cm of torque and 0.100Sec at 8.4V in this short body. The magnetic sensor waterproof IP67 function is added, so you are able to have a free runs in water and keep on going within 30 minutes. Suitable for the application that require large torque output and need to be waterproof.

Please feel free to contact me if you have any questions at agf.sales05@agfrc.com

Feature

Metal Ball Bearings

High Smooth Steel Gears

Full Aluminium Heat Sink Case

Magnetic Sensor Waterproof IP67

Good stability 4-Pole Brushless Motor

Super Torque Digital Low Profile Servo

Suitable for most RC Vehicles cars, Boats, Aircraft, industrial, robots and teaching fields which require a large torque servo.

Specification

Operating Voltage: 4.8-8.4 V

Operating speed:

0.145sec/60° @ 4.8V

0.132sec/60° @ 6.0V

0.115sec/60° @ 7.4V

0.100sec/60° @ 8.4V

Stall Torque:

41 kg-cm (569 oz-in) @ 4.8V

46 kg-cm (639 oz-in) @ 6.0V

53 kg-cm (736 oz-in) @ 7.4V

60 kg-cm (834 oz-in) @ 8.4V

Gear: Steel

Motor: 4-Pole Brushless

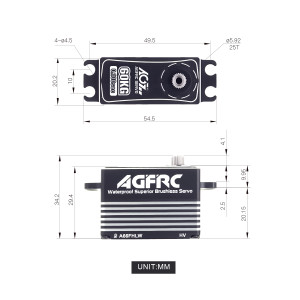

Size: 40.8*20.2*29.5mm (1.6x0.79x1.16 in)

Weight: 66g

Connector Wire: TYU 300mm / 22AWG
