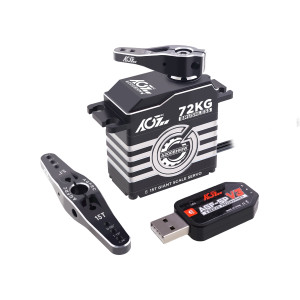

AGFRC A200BHMW IP67 waterproof digital premium RC servo, compatible with 2S normal driving voltage, reliable 15T output shaft and all-aluminum CNC servo case. Powered by good quality brushless motor which could delivery 0.092Sec fast speed and 72kg-cm impressive torque at 8.4V. The steel material gears train keeps servo working smooth and not easy to wear or deform. Programmable features offers more personalized parameter Settings, such as soft start, over load protection and other basic settings. It is a large size servo very suitable for 1/6th scale RC hobbies, 180g lighter style option for 1/5th scale(matched mounting tray is needed). It is also a great choose for industrial machine or robots which need a large torque servo for loading. For easy installation, a 15T spline metal double horn and a single horn are included.

Feature

4 Metal Ball Bearings

High Smooth Steel Gears

Brand New Housing Design

All Aluminium Heat Sink Case

High Efficiency Brushless Motor

Digital Programmable 15T Servo

Magnetic Sensor Waterproof IP67

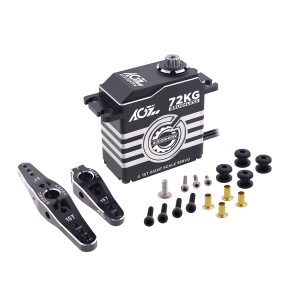

High Quality 15T Metal Servo Horns Included

Suitable for most 1/5th, 1/6th RC Vehicles cars, large scale Aircraft, industrial machine, robots etc.

Specification

A200BHMW

Operating Voltage: 4.8-8.4 V

Operating Speed:

0.150sec/60° @ 4.8V

0.122sec/60° @ 6.0V

0.100sec/60° @ 7.4V

0.092sec/60° @ 8.4V

Stall Torque:

42 kg-cm (583 oz-in) @ 4.8V

52 kg-cm (722 oz-in) @ 6.0V

64 kg-cm (889 oz-in) @ 7.4V

72 kg-cm (1000 oz-in) @ 8.4V

Gear: Steel

Motor: Brushless

Size: 48.5*25*51.2mm (1.9*0.98*2.01 in)

Weight: 180g

Connector Wire: TYU 300mm / 22AWG
