ORCA BALANCE CHARGER/DISCHARGER

A Battery Charger 4y ago

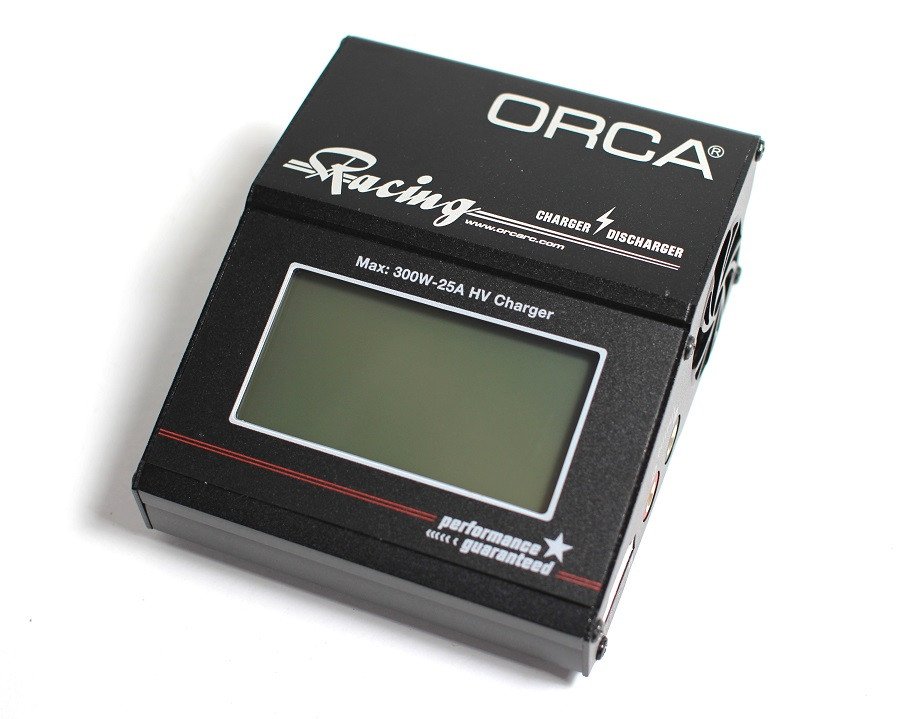

ORCA present the new balance charger / discharger to date, which is bring the powerful 300W and 25Amp output, features touch screen interface compatible the new High Voltage Lithium Batteries charging program, it offer up to 25A charge current and offer the charge graph and cell inter-resistance interface.

SPECIFICATIONS : ● DC Input Voltage: 11-32V ● Control: Touch system ● Charge current: 0.1A-25.0A ● Regenerative discharge power: max. 300W ● Regenerative discharge current:0.1-25.0A ● Charge power: max. 300W ● Cooling system: 2 cooling fan ● Safety timer: 1-720min or turn off ● Memory: 20 different charge/discharge profiles ● Dimension: 12010246mm ● Weight: 450g ● External port: 1-8S Balance Socket-XH, Temperature probe socket, Battery Socket XT90, 5V/1.0A USB port, Micro USB for PC. ● Battery Types/cells: LiPo/Lilon/LiFe/LiHV: 1-6S NiMH/NiCd: 1-15cells Pb: 2-24V ● Charge Voltage: LiPo: 4.18-4.22V/cell Lilon: 4.18-4.20V/cell LiFe: 3.68-3.80V/cell LiHV: 4.30-4.40V/cell ● Discharge cut-off voltage: NiMH/NiCd: 0.1-1.1V/cell LiPo: 3.0-3.3V/cell Lilon: 2.9-3.2V/cell LiFe: 2.6-2.9V/cell LiHV: 3.1-3.4V/cell Pb: 1.8V

Web

Attributes

Bateery Type LiPo
